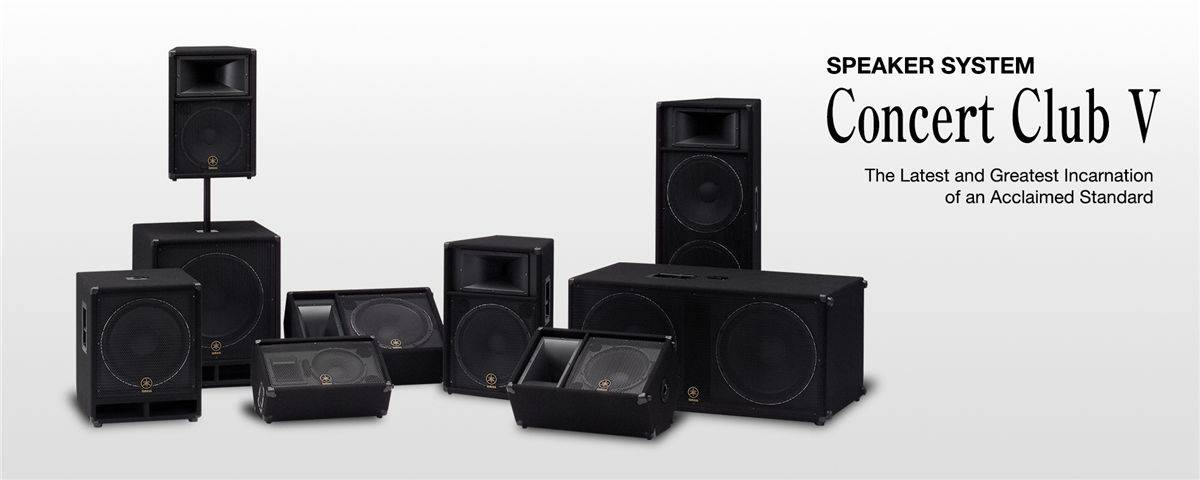

Club V音箱 [無源音箱]

暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
該系列包括3個型號的全頻箱、3個型號的監聽箱和3個型號的低音音箱。觀眾席全頻箱包括12 英寸、15英寸或雙15 英寸低音單元，具有多種選擇性。監聽箱有10英寸、12 英寸或15英寸型號可選。低音箱型號也已擴展和加強: 除了新的15英寸型號，前一代雙單元型號 (15英寸 x 2) 已經升?為低音更具威力的18 英寸 x 2 配置。
除了地面型S215V/C215V 型號，所有觀眾席全頻箱和監聽箱型號都配備有立柱支架插孔，供音箱架支撐使用。可以將這些音箱放置在標準1-3/8英寸直徑音箱架上進行多種用途的使用

Concert Club VC 系列的C112VA 和 C115VA 型號專門設計為固定安裝音箱，而非移動便攜式: 金屬把手和音箱架插孔已經被去掉，同時提供 barrier-strips接口進行安全耐久的連接。所有箱體表面都配置了3/8-英寸的環首螺絲孔 – 頂部和底部各有3個，側面和背面各有2個- 可以便捷地實現垂直安裝和水平安裝 (每只音箱都提供4個 3/8-英寸環首螺絲)。 C112VA 型號還提供了供壁掛安裝使用的頂部、底部和側面螺絲孔。可選購的壁掛吊架可以安裝在吊桿、天花板和墻壁上。

產品信息如有變動，恕不另行通知。網站上信息僅供參考，一切以具體實物為準。。

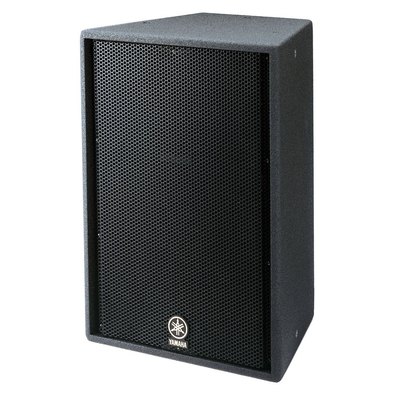

C112VA 無源音箱

FLYABLE MODELS:Ideal for installations

暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。

C112V的懸掛版本
各種安裝支架可供選擇
12個吊裝點
便于布線的接線條
附帶3/8"吊環螺栓

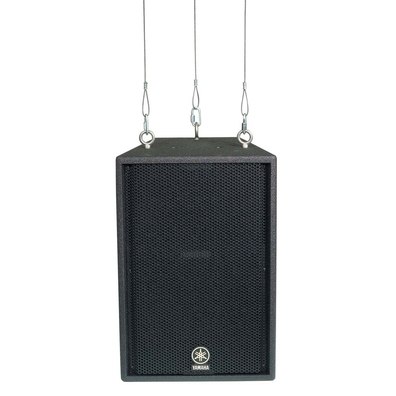

C115VA 無源音箱

FLYABLE MODELS:Ideal for installations

暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。

C115V的懸掛版本
12個吊裝點
便于布線的接線條
附帶3/8"吊環螺栓

BBS251 配件

凈重：2.3kg; 5.1lbs
承重：30kg; 66.2lbs
適用音箱型號：IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10, C112VA, HS8I, HS7I

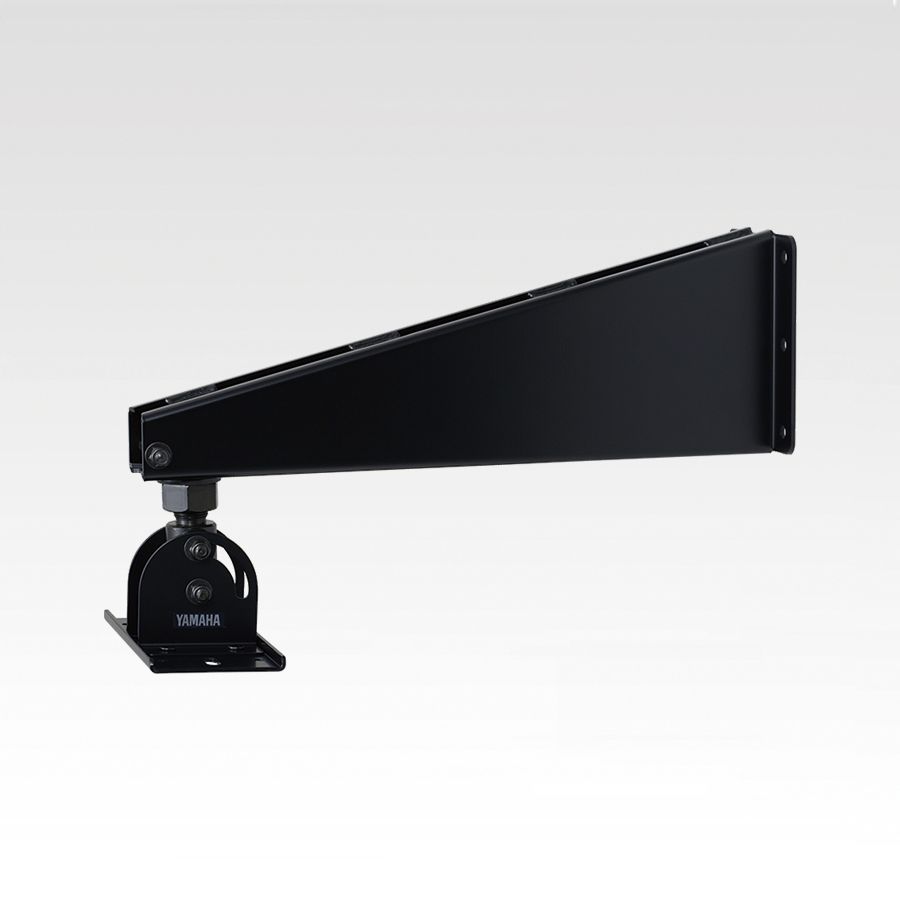

BWS251-300 配件

凈重: 4.4kg; 9.7lbs
承重: 30kg; 66.2lbs
適用音箱型號：IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10, C112VA, HS8I, HS7I

BWS251-400 配件

凈重: 5.2kg; 11.5lbs
承重: 30kg; 66.2lbs
適用音箱型號：IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10, C112VA, HS8I, HS7I

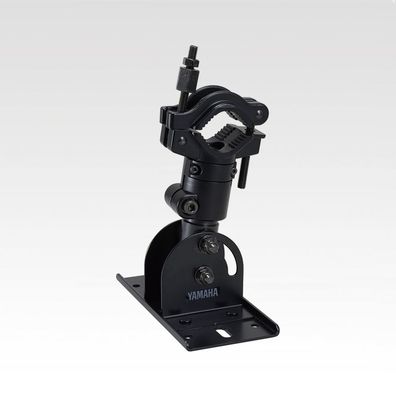

BCS251 配件

凈重: 2.3kg; 5.1lbs
承重: 30kg; 66.2lbs
適用音箱型號: IF2208, IF2108, IF2205, CBR15, CBR12,CBR10, DBR15, DBR12, DBR10,
C112VA, HS8I, HS7I

S SERIES

		S112V	S115V	S215V	SM10V	SM12V	SM15V	SW115V	SW118V	SW218V
音箱類型		2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	15" subwoofer	18" subwoofer	Dual 18" subwoofer
頻率響應 (-10dB)		60Hz-16kHz	55Hz-16kHz	42Hz-16kHz	70Hz-20kHz	60Hz-16kHz	55Hz-16kHz	35Hz-2kHz	30Hz-2kHz	30Hz-2kHz
標稱覆蓋范圍	H	90	90	90	40	40	40	-	-	-
標稱覆蓋范圍	V	40	40	40	60	90	90	-	-	-
部件	LF	12" cone	15" cone	2x 15" cone	10" cone	12" cone	15" cone	15" cone	18" cone	2x 18" cone
部件	HF	Horn, 2" voice coil driver	Horn, 2" voice coil driver	Horn, 2" voice coil driver	Horn, 1" voice coil driver	Horn, 2" voice coil driver	Horn, 2" voice coil driver	-	-	-
電功率	噪聲	175W (EIA)	250W (EIA)	500W (EIA)	125W (EIA)	175W (EIA)	250W (EIA)	250W (EIA)	300W (EIA)	600W (EIA)
	PGM	350W	500W	1000W	250W	350W	500W	500W	600W	1200W
	PEAK	700W	1000W	2000W	500W	700W	1000W	1000W	1200W	2400W
額定阻抗		8ohms	8ohms	4ohms	8ohms	8ohms	8ohms	4ohms	4ohms	4ohms
SPL	靈敏度( 1W, 1m軸向)	97dB SPL	99dB SPL	99dB SPL	96dB SPL	97dB SPL	99dB SPL	95dB SPL	96dB SPL	98dB SPL
	連續 (計算得出)	119dB SPL	123dB SPL	126dB SPL	117dB SPL	119dB SPL	123dB SPL	119dB SPL	121dB SPL	126dB SPL
	峰值 (計算得出)	125dB SPL	129dB SPL	132dB SPL	123dB SPL	125dB SPL	129dB SPL	125dB SPL	127dB SPL	132dB SPL
I/O 接口		2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON
外形		30 degrees trapezoidal	30 degrees trapezoidal	25 degrees trapezoidal	Wedge	Wedge	Wedge	Rectangular	Rectangular	Rectangular
涂裝		噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝
把手		2	2	2	1	1	1	2	2	2
音箱架立柱插孔		1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	-	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	-
外觀尺寸	W	420mm; 16-1/2in	489mm; 19-1/4in	495mm; 19-1/2in	560mm; 22in	632mm; 24-7/8in	719mm; 28-1/4in	506mm; 19-7/8in	610mm; 24in	1221mm; 48-1/8in
	H	632mm; 24-7/8in	719mm; 28-1/4in	1167mm; 46in	353mm; 13-7/8in	414mm; 16-1/4in	483mm; 19in	611mm; 24in	728mm; 28-5/8in	578mm; 22-3/4in
	D	333mm13-1/8in	377mm; 14-7/8in	597mm; 23-1/2in	277mm; 10-7/8in	351mm; 13-7/8in	343mm; 13-1/2in	532mm; 21in	641mm; 25-1/4in	659mm; 26in
凈重		20.8kg; 45.9in	29.4kg; 64.8lbs	47.2kg; 104.1lbs	13.4kg; 29.5lbs	21.4kg; 47.2lbs	28kg; 61.7lbs	28.2kg; 62.2lbs	39kg; 86lbs	65.4kg; 144.2lbs

C SERIES

		C112V	C115V	C215V	CM10V	CM12V	CM15V	CW115V	CW118V	CW218V
音箱類型		2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	2-way full-range speaker	15" subwoofer	18" subwoofer	Dual 18" subwoofer
頻率響應 (-10dB)		60Hz-16kHz	55Hz-16kHz	42Hz-16kHz	70Hz-20kHz	60Hz-16kHz	55Hz-16kHz	35Hz-2kHz	30Hz-2kHz	30Hz-2kHz
標稱覆蓋范圍	H	90	90	90	40	40	40	-	-	-
標稱覆蓋范圍	V	40	40	40	60	90	90	-	-	-
部件	LF	12" cone	15" cone	2x 15" cone	10" cone	12" cone	15" cone	15" cone	18" cone	2x 18" cone
部件	HF	Horn, 2" voice coil driver	Horn, 2" voice coil driver	Horn, 2" voice coil driver	Horn, 1" voice coil driver	Horn, 2" voice coil driver	Horn, 2" voice coil driver	-	-	-
電功率	噪聲	175W (EIA)	250W (EIA)	500W (EIA)	125W (EIA)	175W (EIA)	250W (EIA)	250W (EIA)	300W (EIA)	600W (EIA)
	PGM	350W	500W	1000W	250W	350W	500W	500W	600W	1200W
	PEAK	700W	1000W	2000W	500W	700W	1000W	1000W	1200W	2400W
額定阻抗		8ohms	8ohms	4ohms	8ohms	8ohms	8ohms	4ohms	4ohms	4ohms
SPL	靈敏度( 1W, 1m軸向)	97dB SPL	99dB SPL	99dB SPL	96dB SPL	97dB SPL	99dB SPL	95dB SPL	96dB SPL	98dB SPL
	連續 (計算得出)	119dB SPL	123dB SPL	126dB SPL	117dB SPL	119dB SPL	123dB SPL	119dB SPL	121dB SPL	126dB SPL
	峰值 (計算得出)	125dB SPL	129dB SPL	132dB SPL	123dB SPL	125dB SPL	129dB SPL	125dB SPL	127dB SPL	132dB SPL
I/O 接口		2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON	2x Phone, 2x speakON
外形		30 degrees trapezoidal	30 degrees trapezoidal	25 degrees trapezoidal	Wedge	Wedge	Wedge	Rectangular	Rectangular	Rectangular
涂裝		噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝	噴涂涂裝
把手		2	2	2	1	1	1	2	2	2
音箱架立柱插孔		1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	-	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	1x 35mm (1-3/8in)	-
外觀尺寸	W	416mm; 16-3/8in	485mm; 19-1/8in	491mm; 19-3/8in	556mm; 21-7/8in	628mm; 24-3/4in	715mm; 28-1/8in	500mm; 19-5/8in	605mm; 23-7/8in	1217mm; 47-7/8in
	H	628mm; 24-3/4in	715mm; 28-1/8in	1163mm; 45-3/4in	349mm; 13-3/4in	410mm; 16-1/8in	339mm; 13-3/8in	607mm; 23-7/8in	720mm; 28-3/8in	574mm; 22-5/8in
	D	329mm; 13in	373mm; 14-5/8in	593mm; 23-3/8in	273mm; 10-3/4in	339mm; 13-3/8in	343mm; 13-1/2in	528mm; 20-3/4in	637mm; 25-1/8in	655mm; 25-3/4in
凈重		21.3kg; 47in	30.3kg; 66.8lbs	47.5kg; 104.7lbs	13.3kg; 29.3lbs	21.8kg; 48.1lbs	28.8kg; 63.5lbs	28kg; 61.7lbs	37.2kg; 82lbs	64.7kg; 142.7lbs

FLYABLE MODELS

		C112VA	C115VA
Speaker type		2-way full-range speaker	2-way full-range speaker
Frequency range (-10dB)		60Hz-16kHz	55Hz-16kHz
Nominal coverage	H	90	90
Nominal coverage	V	40	40
Components	LF	12" cone	15" cone
Components	HF	Horn, 2" voice coil driver	Horn, 2" voice coil driver
Power rating	NOISE	175W (EIA)	250W (EIA)
	PGM	350W	500W
	PEAK	700W	1000W
Nominal impedance		8ohms	8ohms
SPL	Sensitivity (1W; 1m on axis)	97dB SPL	99dB SPL
	Continuous (Calculated)	119dB SPL	123dB SPL
	Peak (Calculated)	125dB SPL	129dB SPL
I/O connectors		Barrier strip terminal	Barrier strip terminal
Shape		30 degrees trapezoidal	30 degrees trapezoidal
Finish		Sprayed finish	Sprayed finish
Flying and mounting hardware		4x 3/8" eyebolt, 4x W5/16" screw for 251 series bracket	4x 3/8" eyebolt
Dimensions	W	416mm; 16-3/8in	485mm; 19-1/8in
	H	620mm; 24-3/8in	707mm; 27-7/8in
	D	329mm; 13in	373mm; 14-5/8in
Net weight		21.8kg; 48.1lbs	29.9kg; 65.9lbs
